Introduction: The Global Demand for High-Performance Ceramic Components
Modern industry demands materials that can withstand extreme temperatures, corrosive environments, relentless mechanical stress, and precision tolerances measured in micrometers. Conventional metals and polymers increasingly reach their limits in these demanding applications, driving engineers to seek advanced ceramic solutions that deliver superior performance where traditional materials fail.
Silicon nitride (Si₃N₄) stands at the forefront of this materials revolution. As one of the most capable engineering ceramics ever developed, Si₃N₄ offers a unique combination of high strength, exceptional fracture toughness, outstanding thermal shock resistance, and remarkable chemical inertness - properties that make it irreplaceable in mission-critical applications across aerospace, automotive, electronics, chemical processing, medical devices, and energy sectors.
As a dedicated high-strength Si₃N₄ components manufacturer, Xiamen HUACIJULI New Material Co., Ltd. combines decades of nitride ceramic research expertise with advanced manufacturing capabilities to deliver precision-engineered ceramic components that meet the exacting demands of global industries. Our comprehensive product range includes bearing balls, structural parts, grinding media, positioning pins, and fully custom-engineered ceramic solutions.
Why Si₃N₄? The Material Advantage
Silicon nitride is a non-oxide covalent ceramic composed of silicon and nitrogen atoms arranged in a dense, three-dimensional tetrahedral network. This molecular architecture gives rise to a remarkable property profile rarely found in a single material:
Exceptional Strength
700-1000 MPa flexural strength
High Toughness
6-8 MPa·m½ fracture toughness
Thermal Stability
Up to 1400°C (2550°F)
Lightweight
3.2 g/cm³ - 60% lighter than steel
Unique Microstructural Toughening
Unlike most ceramics, β-Si₃N₄ features elongated, interlocking grains that create a self-reinforcing microstructure. When cracks propagate, these grains bridge the crack faces and pull out, absorbing energy and dramatically increasing fracture toughness - a mechanism unique among monolithic engineering ceramics.
Thermal Shock Champion
With a low CTE of 3.2 × 10⁻⁶/°C and moderate thermal conductivity, Si₃N₄ achieves a thermal shock resistance parameter (R) 3-5× higher than alumina. It can endure rapid quenching from 1000°C into water without cracking - a feat impossible for most other ceramics.
Molecular Structure of Si₃N₄ - The Origin of Strength
The extraordinary mechanical and thermal properties of silicon nitride originate from its atomic-level architecture. The Si₃N₄ crystal is built upon a three-dimensional network of SiN₄ tetrahedra, where each silicon atom bonds covalently to four nitrogen atoms (sp³ hybridization), and each nitrogen atom bridges three silicon atoms. This dense covalent network - with Si–N bond energy of approximately 335 kJ/mol - is the fundamental source of the material's hardness, strength, chemical inertness, and thermal stability.

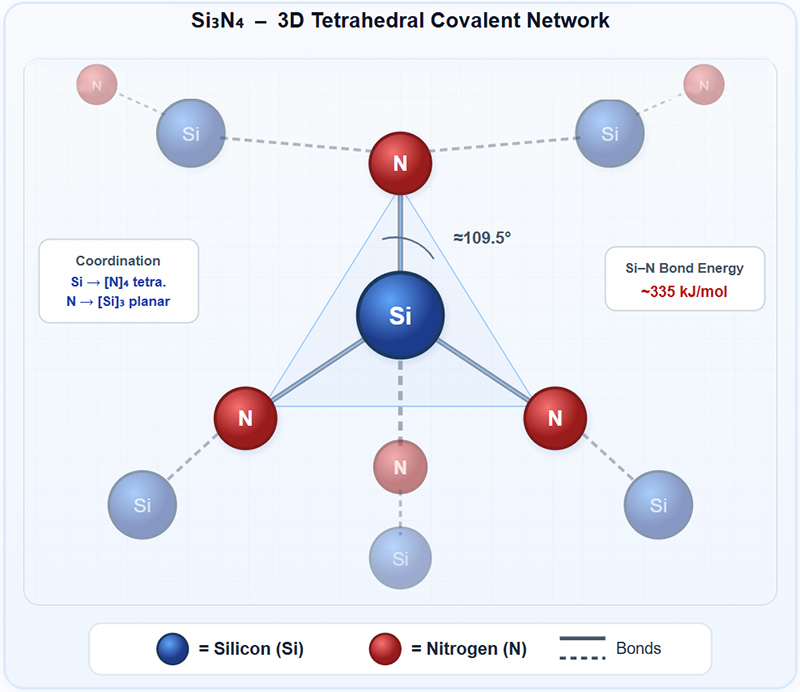

Diagram 1: Si₃N₄ Tetrahedral Covalent Network
Self-Reinforcing Microstructure
The β-Si₃N₄ phase (used in engineering ceramics) forms elongated, needle-like grains during sintering. These grains interlock like a microscopic rebar network, creating crack bridging and grain pull-out toughening mechanisms that give Si₃N₄ fracture toughness values unmatched by other monolithic ceramics.
Strength-to-Weight Ratio
With a density of only 3.2 g/cm³ (vs 7.8 for steel), Si₃N₄ achieves an exceptional specific strength. For rotating components like bearing balls, this 60% weight reduction translates to dramatically lower centrifugal forces at high speeds - enabling rotational speeds that would destroy steel bearings.
Key Properties of High-Strength Si₃N₄ Components
| Property | Si₃N₄ Value | Steel (AISI 52100) | Al₂O₃ |
|---|---|---|---|
| Density (g/cm³) | 3.2-3.4 ★ | 7.8 | 3.9 |
| Flexural Strength (MPa) | 700–1000 ★ | - | 300-630 |
| Fracture Toughness (MPa·m½) | 6-8 ★ | - | 3–5 |
| Vickers Hardness (GPa) | 13-17 | 7-8 | 15-20 ★ |
| Max Service Temperature | 1400°C ★ | ~200°C | 1200°C |
| CTE (×10⁻⁶/°C) | 3.2 ★ | 12.0 | 8.1 |
| Thermal Shock Resistance | Excellent ★ | Good | Moderate |
| Electrical Conductivity | Insulator ★ | Conductor | Insulator |
| Corrosion Resistance | Excellent ★ | Poor-Moderate | Good |
★ = Superior performance in this category. Steel properties shown for bearing-grade AISI 52100 where applicable.
Comprehensive Si₃N₄ Product Portfolio
Xiamen HUACIJULI manufactures a full range of silicon nitride ceramic components, each precision-engineered for specific application requirements:
Si₃N₄ Bearing Balls
Precision ground to G3-G20 grades per ISO 3290/ABMA standards. Available in diameters from 1mm to 60mm+.
G3-G5: Ultra-precision aerospace & machine tool spindles
G10-G16: Standard hybrid bearing applications
G20: General industrial bearing use
Si₃N₄ Structural Components
Custom-engineered shapes for demanding mechanical applications:
Turbine blades & rotor components
Mechanical seal faces & rings
Pump shaft sleeves & bearings
Valve seats, plungers & nozzles
Si₃N₄ Grinding Balls
High-density ceramic grinding media for ultra-fine milling:
High-purity grinding (no metallic contamination)
Superior wear resistance for extended media life
Consistent size distribution for narrow particle size targets
Si₃N₄ Positioning / Welding Pins
Precision locating pins for welding and assembly:
Non-sparking & electrically insulating
Anti-spatter - weld slag does not adhere
5× longer life than zirconia pins
40× longer life than metal pins
Si₃N₄ Ball Blanks
Near-net-shape sintered ball blanks for further processing:
High-density HIP-sintered blanks
Controlled microstructure for precision lapping
Available in various diameters and quantities
Custom Si₃N₄ Parts
Full custom design & manufacturing service:
From concept/CAD to prototype & production
Complex geometries via CIP + CNC machining
Sub-micrometer tolerances (±1μm)
Si₃N₄ Product Range & Application Map
The following diagram illustrates our complete Si₃N₄ product portfolio and maps each component category to its primary industrial applications:

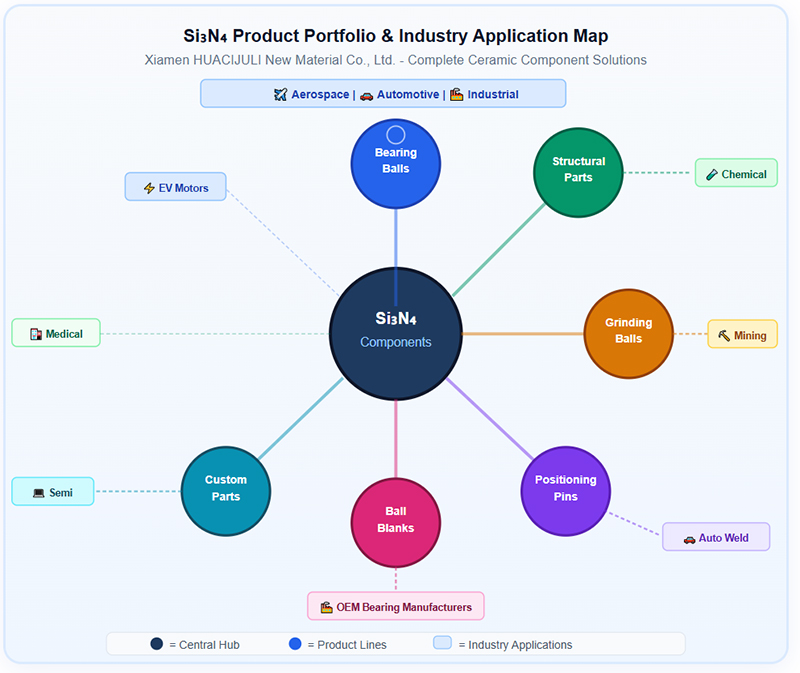

Diagram 2: Si₃N₄ Components - Product Range & Industry Applications
Si₃N₄ Component Applications Across Industries
Our high-strength Si₃N₄ components are deployed across a wide spectrum of demanding industries:
Aerospace & Defense
Components: Hybrid bearing balls for jet engine main shafts, turbine blade tips, combustor liners, gimbal bearings for guidance systems.
Why Si₃N₄: Lightweight (60% less than steel), operates at >1000°C, DN-value capability exceeding 3 million, electrically insulating to prevent stray current damage.
Automotive & EV Powertrains
Components: Hybrid bearing balls for turbocharger shafts, EV motor bearings, transmission bearings, wheel hub bearings.
Why Si₃N₄: Prevents electrical discharge damage (EDM pitting) in EV motors - a critical failure mode for steel bearings. Enables higher turbocharger speeds for improved engine efficiency.
Electronics & Semiconductor
Components: Positioning pins for lithography alignment, wafer handling end effectors, etch rings, CVD/PVD fixtures.
Why Si₃N₄: Non-magnetic, electrically insulating, ultra-low particle generation, and plasma erosion resistance essential for sub-5nm fab environments.
Chemical Processing
Components: Mechanical seal faces, pump bearings, valve balls/seats, thermocouple tubes, crucibles for molten metal handling.
Why Si₃N₄: Near-universal chemical resistance, thermal stability to 1400°C, and 5-10× longer service life than metals in corrosive-abrasive services.
Medical Devices
Components: Surgical instrument bearings, dental handpiece bearings, diagnostic equipment components, biocompatible structural parts.
Why Si₃N₄: Biocompatible, non-toxic, corrosion-proof in body fluids, and enables oil-free operation eliminating lubricant contamination risk.
Energy & Power Generation
Components: Main shaft bearings for wind turbines, Si₃N₄ substrates for power electronics (IGBT/SiC modules), heat exchanger tubes.
Why Si₃N₄: Electrical insulation prevents bearing damage from stray currents in generators. CTE-matched substrates ensure power module reliability over thermal cycling.
Extended Knowledge - EV Motor Bearings: In electric vehicle drive motors, stray electrical currents can pass through steel bearings causing electrical discharge machining (EDM) pitting - microscopic craters that rapidly lead to bearing failure. Si₃N₄'s electrical insulation (volume resistivity >10¹² Ω·cm) completely eliminates this failure mode, making ceramic hybrid bearings the standard solution for EV traction motors operating at 15,000-20,000+ RPM.
Manufacturing Process - From Powder to Precision Component
Every Xiamen HUACIJULI Si₃N₄ component is produced through a rigorous multi-step manufacturing process that ensures exceptional quality and consistency:
Powder Prep
High-purity Si₃N₄ powder + Y₂O₃/Al₂O₃ sintering aids, precision blended
CIP Forming
Cold isostatic pressing at 200-300 MPa for uniform green body density
Sintering
GPS or HIP at 1750-1900°C for >99% theoretical density
CNC Machining
Diamond grinding, lapping, polishing to ±1μm tolerances
QC & Delivery
100% inspection, density/strength testing, precision packaging
Extended Knowledge - Sintering Selection: Gas Pressure Sintering (GPS) achieves near-full density with controlled β-grain elongation, optimizing toughness. Hot Isostatic Pressing (HIP) produces the highest density (>99.9%) and is preferred for bearing-grade balls requiring maximum fatigue life. The sintering method is selected based on the target application and performance specifications.
Why Partner With HUACIJULI?
As your dedicated high-strength Si₃N₄ components manufacturer, Xiamen HUACIJULI New Material Co., Ltd. delivers:
Decades of Expertise
Our team combines decades of nitride ceramic R&D experience with advanced manufacturing know-how.
R&D Driven Innovation
Continuous development of new formulations, microstructures, and processing techniques for next-gen performance.
Full Custom Capability
End-to-end custom engineering from concept/CAD through prototype and mass production.
Uncompromising Quality
100% inspection, rigorous testing protocols, and consistent batch-to-batch quality assurance.
Multi-Material Portfolio
Beyond Si₃N₄, we also manufacture Al₂O₃, ZrO₂, and SiC ceramics - a one-stop shop for all advanced ceramic needs.
Global Supply
Reliable worldwide delivery with responsive technical support and competitive pricing.
Ready to Source High-Strength Si₃N₄ Components?
Contact our engineering team to discuss your application requirements and receive a custom quote.
Contact HUACIJULI Engineering Team
Frequently Asked Questions (FAQ)
Q1: What Si₃N₄ ceramic components does HUACIJULI manufacture?
We manufacture a comprehensive range including precision bearing balls (G3-G20), grinding balls, ball blanks, structural components, positioning/welding pins, and custom-shaped ceramic parts. We also produce alumina (Al₂O₃), zirconia (ZrO₂), and silicon carbide (SiC) ceramic components.
Q2: What precision grades are available for Si₃N₄ bearing balls?
Available from G3 to G20 per ISO 3290/ABMA standards. G3 balls offer sphericity within 0.08μm for ultra-precision aerospace and machine tool spindles. G5-G10 grades are standard for hybrid bearings in automotive and industrial applications. G16-G20 serve general industrial bearing requirements.
Q3: Which industries use high-strength Si₃N₄ components?
Si₃N₄ components serve aerospace (turbine bearings), automotive/EV (motor bearings, turbocharger shafts), electronics/semiconductor (positioning pins, fixtures), chemical processing (seals, valves), medical devices (surgical instruments), energy (wind turbine bearings, power substrates), and general industrial machinery.
Q4: Why choose Si₃N₄ over steel for bearing applications?
Si₃N₄ balls are 60% lighter than steel, enabling higher speeds with lower centrifugal forces. They offer 3-10× longer fatigue life, are electrically insulating (preventing EDM damage in EV motors), resist corrosion, operate with minimal lubrication, and maintain precision at temperatures up to 1000°C where steel bearings fail.
Q5: Can HUACIJULI manufacture custom Si₃N₄ components?
Yes. We provide comprehensive custom design and manufacturing services - from initial consultation and CAD design through prototyping, testing, and full-scale production. Our CNC machining capability achieves sub-micrometer tolerances (±1μm) with surface finishes to Ra<0.1μm for demanding applications.
