Introduction: The Growing Demand for Advanced Ceramic Materials
In the modern industrial manufacturing landscape, the demand for high-performance materials continues to escalate at an unprecedented pace. Across every major sector - from aerospace propulsion to precision medical devices - engineers and manufacturers require components that deliver an exceptional combination of mechanical strength, long-term durability, and resistance to extreme environmental conditions.
Traditional metals and polymers increasingly fall short when pushed to their thermal, mechanical, or chemical limits. This has driven a paradigm shift toward advanced structural ceramics, with silicon nitride (Si₃N₄) emerging as one of the most capable and versatile engineering materials available today.
As a leading Advanced Si₃N₄ Structural Ceramic Component Factory, XIAMEN HUACIJULI New Material Co., Ltd. stands at the forefront of this materials revolution. We deliver cutting-edge silicon nitride ceramic components that empower industries to push the boundaries of performance, efficiency, and reliability.
What Is Silicon Nitride (Si₃N₄)?
Silicon nitride (Si₃N₄) is a high-performance, non-oxide ceramic material renowned for its outstanding mechanical properties. Unlike conventional oxide ceramics, Si₃N₄ features a strong covalent bonding network between silicon and nitrogen atoms, which gives rise to a remarkable combination of characteristics rarely found together in a single material.
High Fracture Toughness
6-8 MPa·m½ - among the highest of all monolithic ceramics
Thermal Shock Resistance
Operates reliably up to 1400°C with minimal expansion
Wear Resistance
Exceptional abrasion resistance with low friction coefficient
Chemical Inertness
Resistant to most acids, alkalis, and molten metals
This unique combination of properties makes Si₃N₄ the ideal choice for applications where both strength and reliability under harsh conditions are non-negotiable. From gas turbine hot-section components to precision medical instruments, silicon nitride ensures that mechanical systems operate at peak efficiency under the most demanding circumstances.

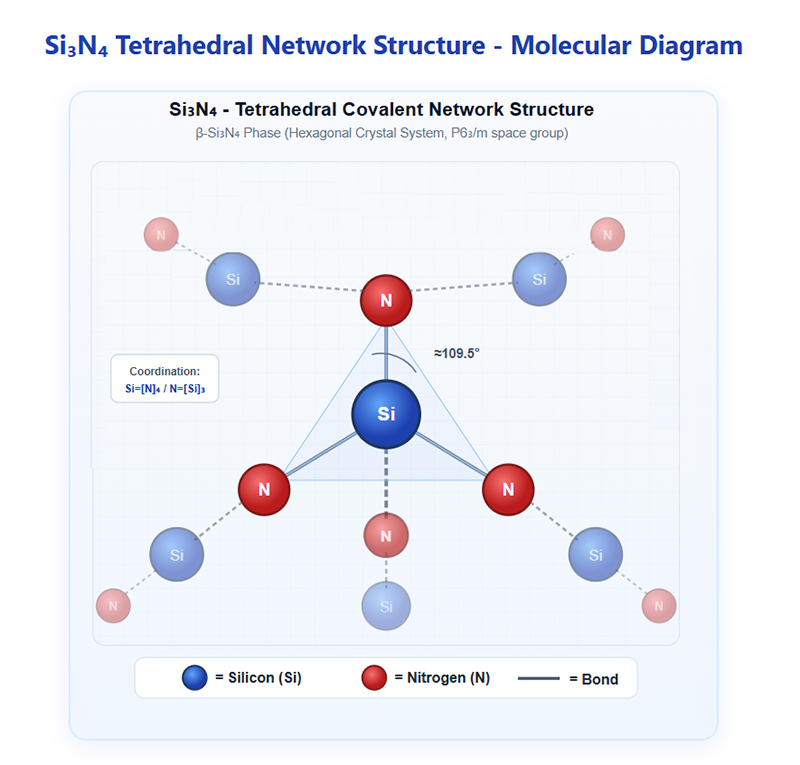

Molecular Composition of Silicon Nitride (Si₃N₄)
Understanding the molecular architecture of silicon nitride is key to appreciating why it outperforms most other engineering ceramics. The Si₃N₄ crystal is built upon a three-dimensional network of SiN₄ tetrahedra, where each silicon atom is covalently bonded to four nitrogen atoms, and each nitrogen atom bridges three silicon atoms. This dense, strongly bonded framework is the fundamental origin of the material's extraordinary mechanical and thermal properties.
Si₃N₄ exists in three primary crystalline phases: α-Si₃N₄ (hexagonal, formed at lower temperatures), β-Si₃N₄ (hexagonal, the most stable and commonly used phase in engineering ceramics), and γ-Si₃N₄ (cubic spinel-type, formed only under extreme high-pressure conditions). The β-phase is particularly valued for its elongated grain morphology, which creates a self-reinforcing microstructure through crack-bridging mechanisms.
Bonding Characteristics
Each Si atom forms 4 covalent bonds with N atoms in a tetrahedral arrangement (sp³ hybridization). Each N atom bridges 3 Si atoms in a planar trigonal configuration. This creates a rigid, highly cross-linked 3D network with no weak interlayer bonds - explaining Si₃N₄'s exceptional hardness and strength.
Property-Structure Relationship
The strong Si-N covalent bonds (bond energy ~335 kJ/mol) and dense network structure directly account for the material's high melting point (~1900°C decomposition), low thermal expansion coefficient (3.2 × 10⁻⁶/K), and outstanding resistance to chemical attack and creep at elevated temperatures.
Why Choose Si₃N₄ Structural Ceramic Components?
The demand for materials that can withstand extreme temperatures, corrosive environments, and relentless mechanical wear has never been higher. Silicon nitride ceramic components stand at the forefront of meeting these challenges. Here is a detailed breakdown of the key advantages that make Si₃N₄ the material of choice for mission-critical applications:
High-Temperature Stability
Si₃N₄ maintains its mechanical strength and dimensional stability at temperatures up to 1400°C (2550°F). This is critically important in aerospace and automotive industries where components routinely face extreme thermal loads - from turbocharger rotors to turbine blade tips. Unlike metals that soften and creep at high temperatures, Si₃N₄ retains over 80% of its room-temperature flexural strength at 1200°C.
Exceptional Wear Resistance
Si₃N₄ ceramic components offer outstanding wear resistance with a low coefficient of friction, dramatically extending service life and reducing the frequency of replacements. In bearing applications, Si₃N₄ balls can last 3 to 10 times longer than their steel counterparts, significantly reducing total cost of ownership and unplanned downtime in high-speed spindle and precision machinery applications.
Superior Corrosion Resistance
Si₃N₄ is chemically inert and highly resistant to a wide range of corrosive substances, including most mineral acids, alkalis, and molten non-ferrous metals. This makes it ideal for chemical processing equipment, semiconductor fabrication environments, and marine applications where components are continuously exposed to aggressive chemicals, saltwater, or high-humidity conditions.
Lightweight Yet Strong
Despite weighing approximately 40% less than steel (density: 3.2-3.4 g/cm³ vs 7.8 g/cm³), Si₃N₄ delivers impressive mechanical strength with flexural strength values of 700-1000 MPa. This exceptional strength-to-weight ratio is invaluable in aerospace and automotive applications where every gram of weight savings translates directly into improved fuel efficiency, payload capacity, and performance.
Electrical Insulation
Si₃N₄ provides excellent electrical insulation properties with high dielectric strength and volume resistivity. This makes it suitable for electronic packaging, semiconductor processing fixtures, and electrical insulation applications where both mechanical performance and dielectric isolation are required simultaneously - a combination that few other structural materials can offer.
Thermal Shock Resistance
With a low coefficient of thermal expansion (CTE ≈ 3.2 × 10⁻⁶/°C) and moderate thermal conductivity, Si₃N₄ can endure rapid temperature changes of several hundred degrees without cracking. This thermal shock resistance is 3-5× superior to most oxide ceramics, making it indispensable for applications involving frequent thermal cycling such as furnace fixtures and engine components.
Manufacturing Excellence & Advanced Processing Technology
At Xiamen HUACIJULI New Material Co., Ltd., our manufacturing capability is built on a foundation of deep ceramic engineering expertise and state-of-the-art processing technology. We employ a comprehensive suite of advanced manufacturing methods to produce high-precision Si₃N₄ components that meet the exacting specifications of our global customers.
Powder Preparation
High-purity Si₃N₄ powder with sintering additives (Y₂O₃, Al₂O₃) precisely blended and milled
Isostatic Pressing (CIP)
Cold isostatic pressing at 200-300 MPa for uniform green body density and complex shape forming
Precision Sintering
Gas pressure sintering (GPS) or hot isostatic pressing (HIP) at 1700-1900°C for full densification
CNC Machining & QC
Diamond grinding, lapping, and polishing to μm-level tolerances with 100% inspection
Extended Knowledge - Sintering Methods: We utilize multiple sintering techniques depending on application requirements. Pressureless sintering is cost-effective for standard shapes; gas pressure sintering (GPS) achieves near-full density with controlled grain growth; and hot isostatic pressing (HIP) produces the highest density (>99.9%) and mechanical properties for aerospace and bearing-grade components. Each method is selected based on the target performance specifications and cost optimization.
Our Product Portfolio
Xiamen HUACIJULI New Material Co., Ltd. specializes in the innovative R&D and production of a comprehensive range of advanced ceramic products. Our core product lines are organized by material system:
CORE Silicon Nitride (Si₃N₄) Products
Si₃N₄ Ceramic Bearing Balls - Precision ground to G5-G20 grades for hybrid and full-ceramic bearings
Si₃N₄ Ball Blanks - Near-net-shape sintered blanks for further processing
Si₃N₄ Grinding Balls - High-density media for ultra-fine milling operations
Si₃N₄ Positioning Pins - Welding and assembly locating pin with exceptional wear life
Si₃N₄ Structural Components - Custom-engineered parts for aerospace, automotive, and industrial applications
Ceramic Bearings (Assembled) - Complete hybrid and full-ceramic bearing solutions
Custom-Shaped Si₃N₄ Parts - Designed and manufactured to customer specifications
FULL RANGE Additional Ceramic Material Lines
Alumina (Al₂O₃) Ceramics - Structural parts, substrates, and insulating components (85%-99.8% purity)
Alumina Structural Parts - Wear plates, tubes, and precision machined components
Zirconia (ZrO₂) Ceramics - High-toughness parts for medical and precision applications
Zirconia Structural Parts - Custom components leveraging transformation toughening
Silicon Carbide (SiC) Ceramics - Extreme hardness and thermal conductivity applications
SiC Structural Components - Heat exchangers, seals, and kiln furniture
Custom Design Service: Beyond our standard product catalog, HUACIJULI provides comprehensive custom design and manufacturing services for irregularly shaped ceramic structural parts. Our engineering team works directly with clients from concept and CAD design through prototyping, testing, and full-scale production - ensuring every component meets precise application requirements.
Research & Development - Innovation at Our Core
Innovation is the beating heart of our Advanced Si₃N₄ Structural Ceramic Component Factory. HUACIJULI operates a dedicated Research & Development department staffed by technical professionals with decades of experience in nitride ceramic research and industrial application engineering.
Material Science
Continuous optimization of Si₃N₄ microstructure, grain boundary engineering, and sintering additive systems for enhanced performance
Application Development
Developing new applications and pushing the performance boundaries of Si₃N₄ in emerging industries like EV powertrains and hydrogen energy
Process Innovation
Advancing manufacturing techniques to improve yield, reduce costs, and achieve tighter dimensional tolerances for next-gen components
By continuously pushing the boundaries of what silicon nitride can achieve, our R&D team enables us to deliver cutting-edge solutions for industries seeking more efficient, more durable, and more reliable materials. This commitment to innovation ensures that our customers always have access to the most advanced ceramic technology available.
Industries We Serve
Our Si₃N₄ structural ceramic components are trusted by leading manufacturers across a diverse range of high-demand industries:
Aerospace & Defense
Turbine blades, combustor components, bearing systems, and radar-transparent radomes for military and commercial aircraft
Automotive & EV
Turbocharger rotors, glow plugs, hybrid bearing systems, and EV powertrain insulation components
Electronics & Semiconductor
Wafer processing fixtures, etch rings, CVD/PVD components, and electronic packaging substrates
Medical Devices
Surgical instruments, orthopedic implant components, dental tools, and diagnostic equipment parts
Energy & Power Generation
Gas turbine hot-section parts, heat exchanger components, fuel cell interconnects, and nuclear applications
Industrial Manufacturing
Cutting tools, forming dies, precision bearings, wear plates, and chemical processing equipment
Why Partner With HUACIJULI New Material?
As industries continue to evolve and the demand for advanced materials intensifies, Xiamen HUACIJULI New Material Co., Ltd. stands ready as your trusted partner in high-performance ceramic solutions. Here is what sets us apart:
Decades of Team Expertise
Our technical team comprises professionals with decades of hands-on experience in nitride ceramic research, development, and industrial application - ensuring deep domain knowledge in every project.
Continuous Innovation
Our dedicated R&D department continuously pushes the boundaries of Si₃N₄ performance, developing new formulations, processes, and applications to keep our customers ahead of the curve.
Custom Engineering Capability
From initial concept and CAD design to prototype and mass production - we provide end-to-end custom ceramic manufacturing tailored to your exact specifications and performance requirements.
Uncompromising Quality
Every component undergoes rigorous quality control including dimensional inspection, density verification, and mechanical testing - ensuring exceptional precision and reliability in every delivery.
Ready to Elevate Your Application with Advanced Si₃N₄ Ceramics?
Contact our engineering team today to discuss your project requirements and discover how HUACIJULI can deliver the perfect ceramic solution for your industry.
Contact HUACIJULI Engineering TeamFrequently Asked Questions (FAQ)
Q1: What products does the Advanced Si₃N₄ Structural Ceramic Component Factory manufacture?
HUACIJULI New Material manufactures a comprehensive range of silicon nitride products including Si₃N₄ ceramic bearing balls, grinding balls, positioning pins, structural components, ball blanks, and assembled ceramic bearings. We also produce alumina (Al₂O₃), zirconia (ZrO₂), and silicon carbide (SiC) ceramic parts. Custom-shaped ceramic structural parts are designed and manufactured to customer specifications.
Q2: Which industries benefit from Si₃N₄ structural ceramic components?
Si₃N₄ structural ceramic components are widely used across aerospace (turbine blades, engine components), automotive (turbocharger rotors, hybrid bearings, EV powertrains), electronics & semiconductor (wafer processing fixtures, insulating substrates), medical devices (surgical instruments, implants), chemical processing, and high-performance industrial machinery.
Q3: What manufacturing processes are used for Si₃N₄ ceramic components?
Our factory employs advanced manufacturing processes including cold isostatic pressing (CIP) for uniform green body forming, precision sintering (pressureless, gas pressure sintering, or hot isostatic pressing) at 1700-1900°C for full densification, and CNC diamond machining (grinding, lapping, polishing) to achieve micrometer-level dimensional tolerances. Every component undergoes 100% quality inspection.
Q4: Why choose HUACIJULI New Material for ceramic components?
HUACIJULI New Material Co., Ltd. combines decades of team expertise in nitride ceramic research with advanced manufacturing technology and a dedicated R&D department. We deliver precision-engineered, high-performance ceramic solutions with comprehensive custom design and manufacturing capabilities - from concept through mass production.
Q5: Can you manufacture custom-shaped Si₃N₄ ceramic parts?
Yes. HUACIJULI provides comprehensive custom design and manufacturing services for irregularly shaped ceramic structural parts. Our engineering team collaborates directly with clients through every stage - from initial design consultation and CAD modeling through prototyping, testing, and full-scale production - ensuring every custom component meets precise application requirements and performance specifications.
